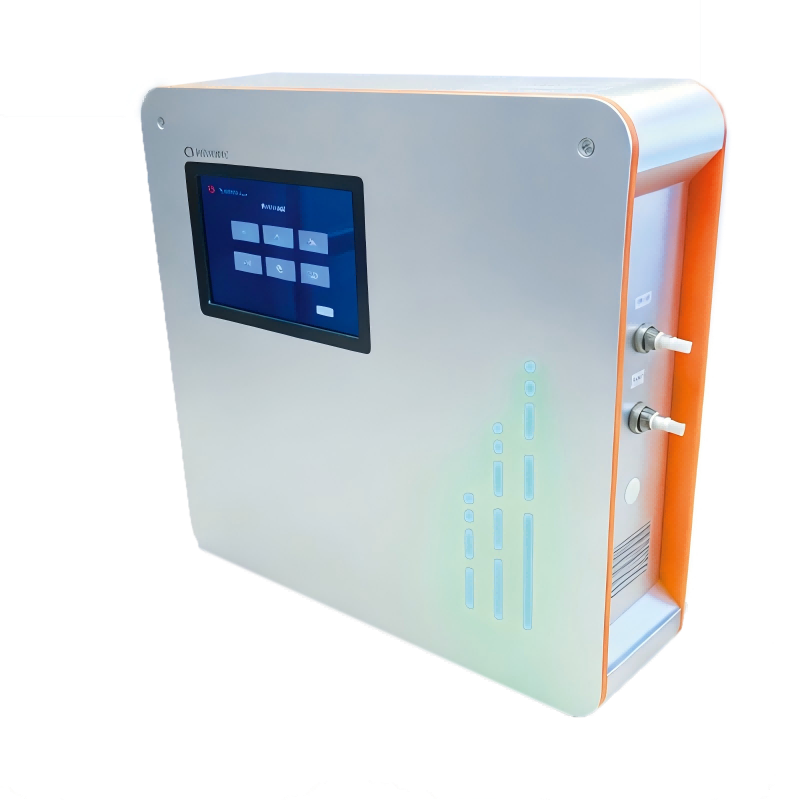

An integrated intelligent monitoring device for various gas sources such as gascylinders and gas generators. Monitor the gas source status in real time to prevent contamination and damage to backend gas consuming equipment, ensuring comprehensive support for efficierexperimental operations.
Multidimensional Precision Monitoring System (Optional)
l Gas purity monitoring, real-time multi-point monitoring of 1-3 gas sources, ensuring clear data
l Gas temperature monitoring, multi-point real-time temperature tracking, to avoid overheating operation risks
l Gas pressure monitoring enables synchronized pressure surveillance of dual gas storage tanks, preventing system failures caused by abnormal pressure
l Equipment drainage monitoring, intelligent detection of multiple drainage points, ensuring unobstructed drainage
Triple Warning Protection System (Optional)
l Screen pop-up alerts display real-time anomaly details, enabling operators to quickly locate issues
l Light strip color-changing warning, red/green/blue tri-color warning for medium to long-distance visual management
l Mobile SMS alerts, supporting the binding of 3 phone numbers, enabling remote receipt of warning messages for unattended operation
Environment Adaptation Strategy (optional)
l Preset environmental strategy library, with multiple fan and drainage control logic options available. It can be adapted to the regional climate characteristics, seasonal features, or laboratory environment of each nitrogen generator, optimizing energy efficiency.
|
Technical Parameters |
|
|
Equipment dimensions |
120*400*380 mm（W*D*H） |
|
Voltage |
10A/220V |
|
Power |
140W |
|
Display screen |
7 inches |
|
Light strip |
Color-changing light strip |
|
Number of buzzers |
1 |
|
Purity monitoring point |
0-3 |
|
Pressure monitoring point |
0-2 |
|
Drainage monitoring point |
0-2 |
|
Temperature monitoring point |
0-3 |
|
Optional warning function |
Abnormal pressure warning, abnormal temperature warning, abnormal drainage warning, abnormal purity warning, SMS reminder |
|
Optional Control Configurations |
Temperature controlled variable speed fans, liquid monitoring drainage, dual control of drainage |
